Components And Components Location: Components

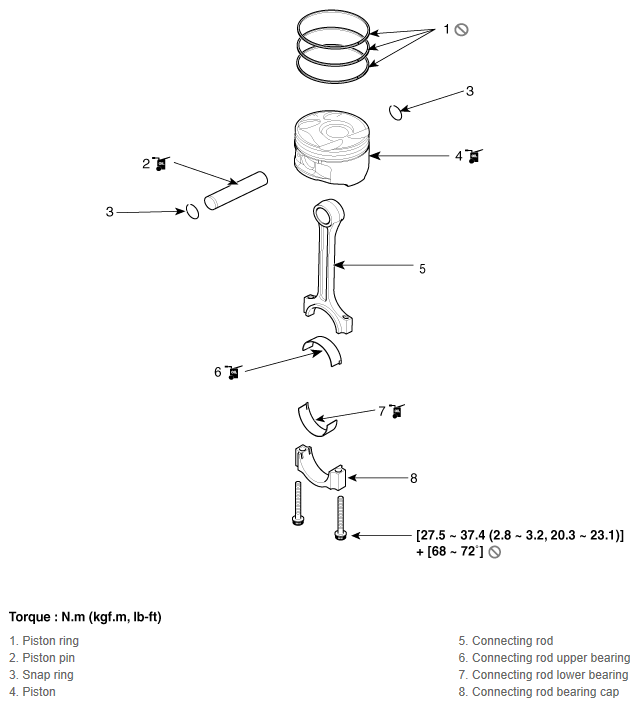

Fig 1: Piston And Connecting Rod Components With Torque Specification

G11856039

Courtesy of KIA MOTORS AMERICA, INC.
