Components And Components Location: Components

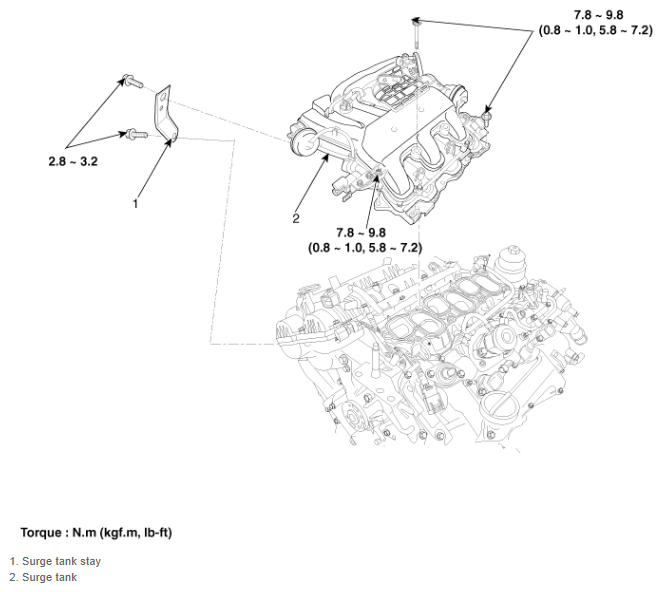

Fig 1: Surge Tank Components With Torque Specification

G11856249

Courtesy of KIA MOTORS AMERICA, INC.
