Circuit Diagram

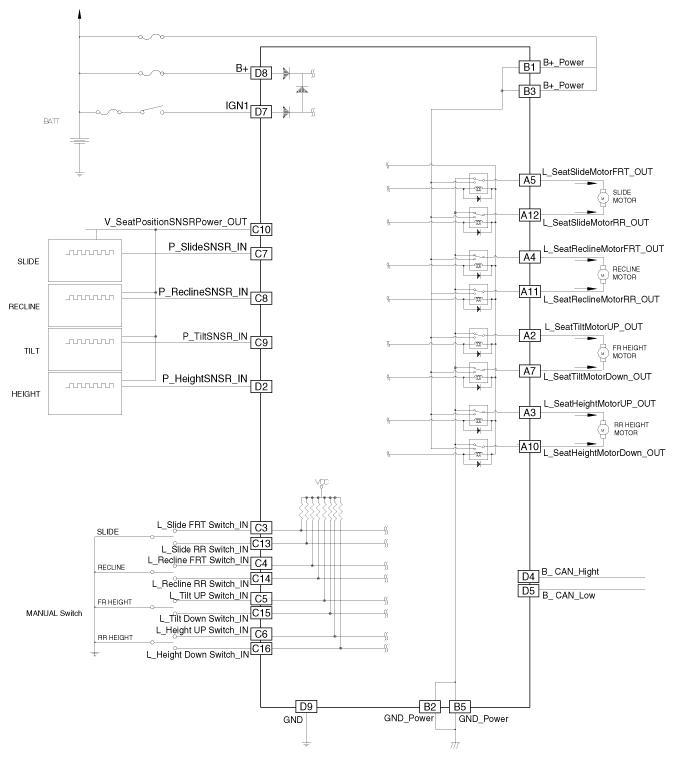

Fig 1: Integrated Memory Schematic Diagrams

G11858795

Courtesy of KIA MOTORS AMERICA, INC.
