Special Service Tools
SPECIAL SERVICE TOOLS SPECIFICATIONS
| Tool Name/Number | Illustration | Description |
|---|---|---|
| Engine support fixture (Beam) 09200-3N000 |
Used for holding engine assembly when removing/installing transaxle Used with the supporter (09200-2S200) and adapter (09200-1P100, 09200-4X000) |
|
| Engine support fixture (Adapter) 09200-1P100 |
Used for holding engine assembly when removing/installing transaxle Used with the bar (09200-3N000) and adapter (09200-4X000), and supporter (09200-2S200) |
|
| Engine support fixture (Adapter) 09200-4X000 |
Used for holding engine assembly when removing/installing transaxle Used with the bar (09200-3N000) and adapter (09200-1P100), and supporter (09200-2S200) |
|
| Engine support fixture (Supporter) 09200-2S200 |
Used for holding engine assembly when removing/installing transaxle Used with the bar (09200-3N000) and adapter (09200-1P100, 09200-4X000) |
|
Oil seal installer
|
Used for installing differential oil seal | |
| Inhibitor switch guide pin 09480-A3800 |
Used for fixing "N" range when installing inhibitor switch |

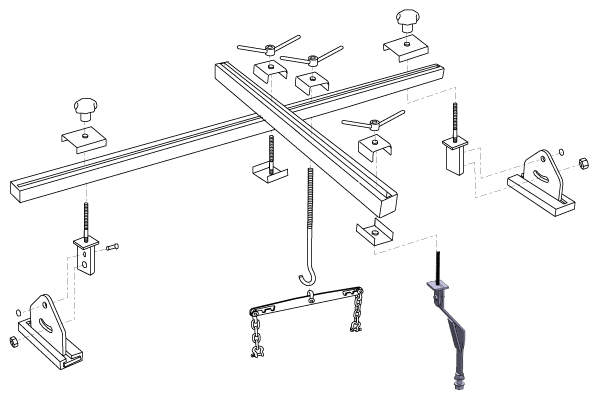

* Engine support fixture special tool assembly drawing
