FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "FOB KEY STATUS INFO".
    Fig 1: Scantool Display - ID Resister And FOB Key Status Information
    G11846529Courtesy of KIA MOTORS AMERICA, INC.

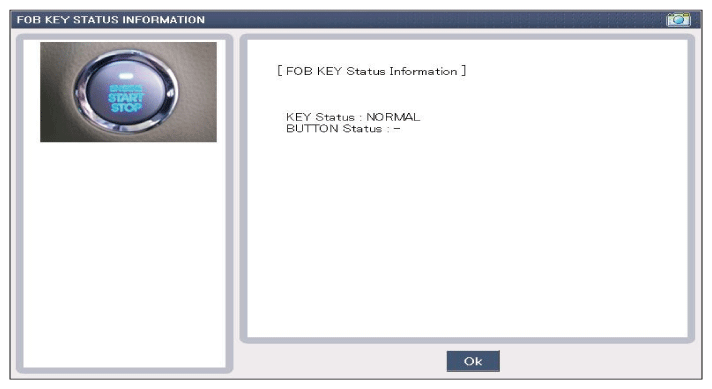

    Fig 2: Scantool Display - FOB Key Status Information
    G11846530Courtesy of KIA MOTORS AMERICA, INC.
