Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.

Connect scantool to Data Link Connector(DLC).
Engine "ON".
Driving 1st speed to 6th speed at D-range.
Select "Current Data" mode and monitor "Oil pump speed Actual RPM" parameter current value.
Specification: See below data

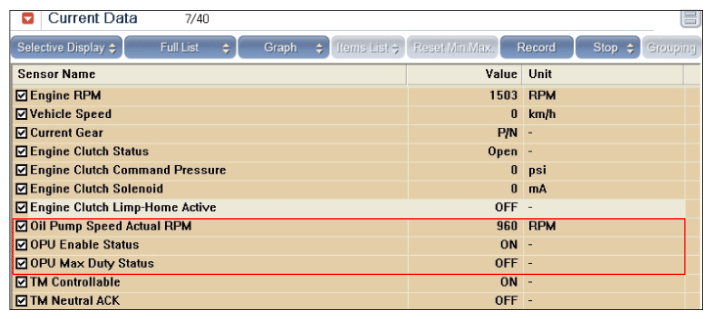

Fig 1: Current Data Oil Pump Speed Actual P & N Range
Courtesy of KIA MOTORS AMERICA, INC.

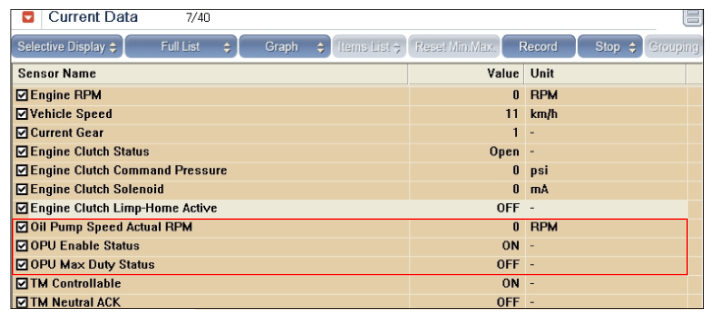

Fig 2: Current Data Oil Pump Speed Actual D Range 1st Gear
Courtesy of KIA MOTORS AMERICA, INC.

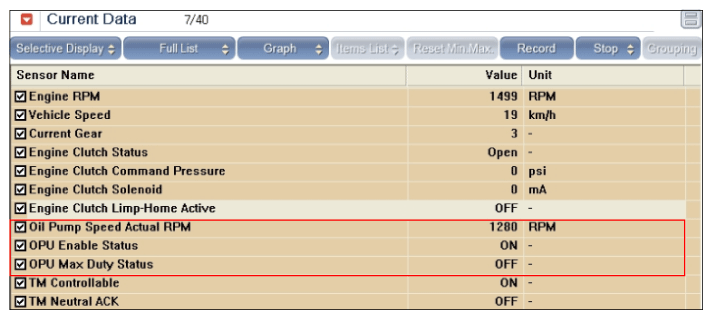

Fig 3: Current Data Oil Pump Speed Actual D Range 2nd Gear
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Current Data Oil Pump Speed Actual D Range 3rd Gear
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Current Data Oil Pump Speed Actual D Range 4th Gear
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Current Data Oil Pump Speed Actual D Range 5th Gear
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Current Data Oil Pump Speed Actual D Range 6th Gear
Courtesy of KIA MOTORS AMERICA, INC.

* OPU may be working or not according to by driving situation and loading condition
Is Oil pump speed Actual RPM value within specific?
YES
- Fault is intermittent caused by poor contact between PCM/TCM and Sensor, and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "Verification Of Vehicle Repair " procedure.
NO
- Go to Terminal & Connector Inspection procedure below.
