Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the RCV control solenoid valve after disconnect the connector (A), bolt (B) and RCV hoses (C).

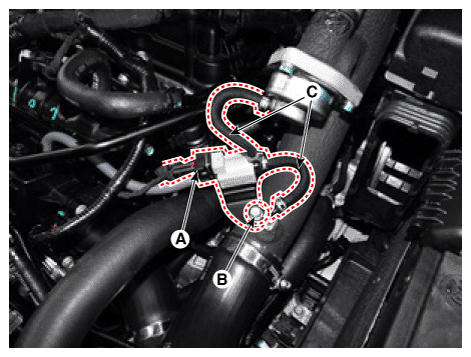

Fig 1: Disconnecting Connector, Bolt And RCV Hoses
G11826077Courtesy of KIA MOTORS AMERICA, INC.
