Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

  3. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Disconnect the engine coolant temperature sensor connector (A).

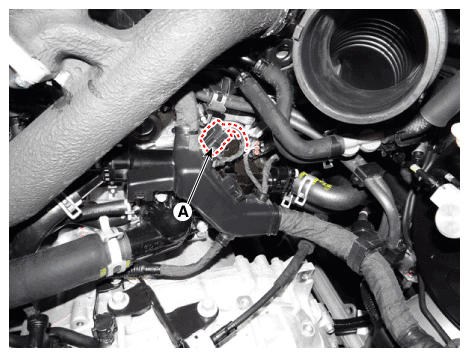

    Fig 1: Disconnecting Engine Coolant Temperature Sensor Connector
    G11825963Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the spring clip (A), and then pull the sensor from the water temperature control assembly.

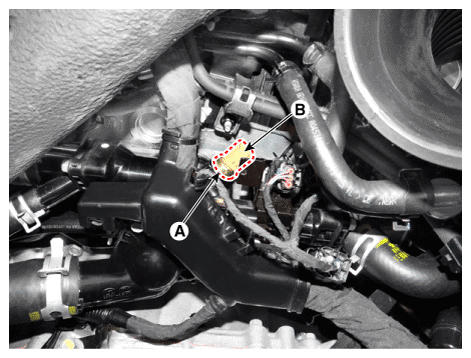

    Fig 2: Removing Spring Clip
    G11825964Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Note that engine coolant may be flowed out from the water temperature control assembly when removing the sensor.
