Interior 2 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the interior 2 antenna (B) after loosening the mounting screws and disconnecting the connector (A).

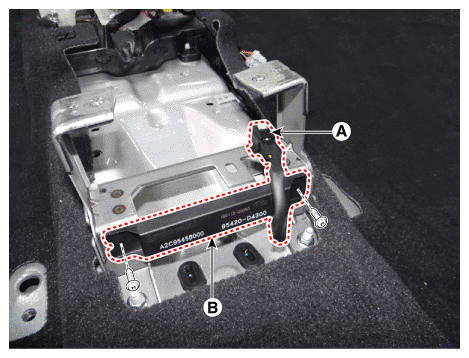

    Fig 1: Locating Interior 2 Antenna And Connector With Mounting Screws
    G11825048Courtesy of KIA MOTORS AMERICA, INC.
