Antenna Status Check

Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

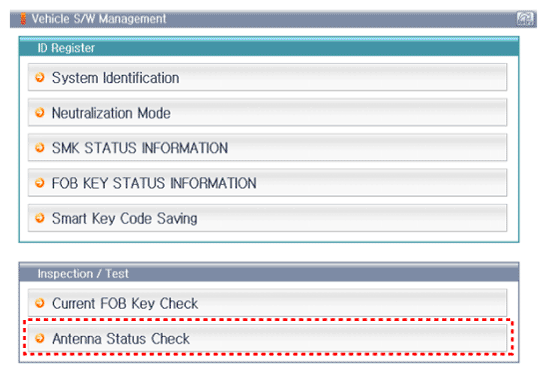

Fig 1: Scantool Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.
After ignition "ON", select the "Antenna Status Check".

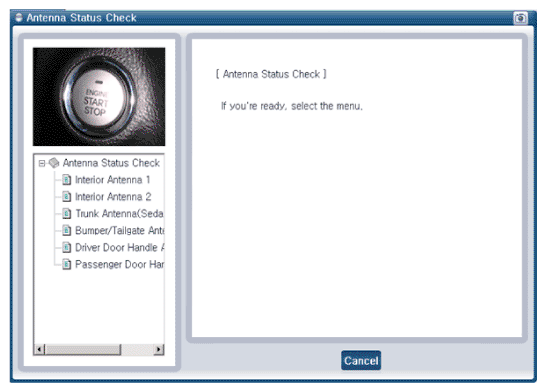

Fig 2: Scantool Display - Antenna Status Check
Courtesy of KIA MOTORS AMERICA, INC.
Set the smart key near the related antenna and operate it with a KDS/GDS.

Fig 3: Scantool Display - Interior Antenna 1
Courtesy of KIA MOTORS AMERICA, INC.

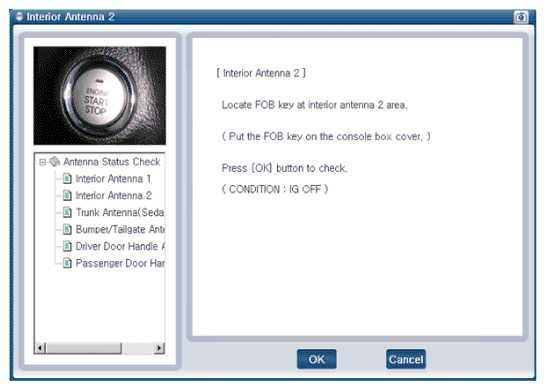

Fig 4: Scantool Display - Interior Antenna 2
Courtesy of KIA MOTORS AMERICA, INC.
If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
Antenna status
- INTERIOR Antenna 1
- INTERIOR Antenna 2
- INTERIOR Antenna 3
- BUMPER/Trunk Antenna
- DRV_DR Antenna
- AST_DR Antenna
