Monitor KDS/GDS Data

  1. Ignition "OFF", connect KDS/GDS.
  2. Ignition "ON" & Engine "OFF", select "Current Data  " mode.
  3. Monitor the "Battery Voltage" parameter on the KDS/GDS.

    Specification:  Approx. 11.5V-12.5V

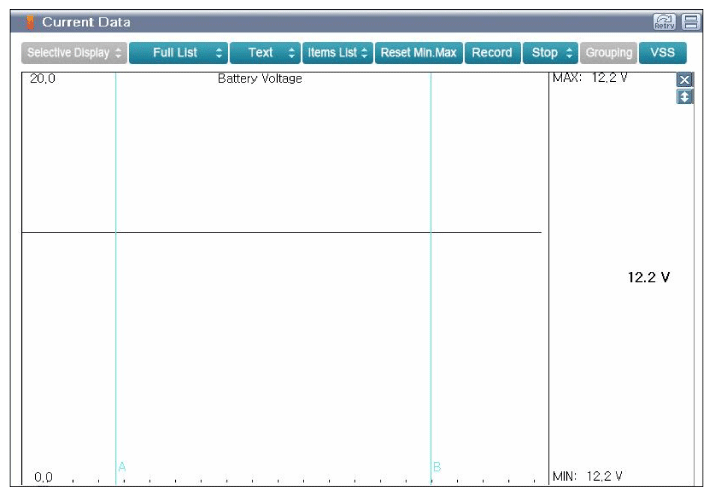

    Fig 1: Screen Display - Battery Voltage Parameter (Ignition ON & Engine OFF)
    G11836536Courtesy of KIA MOTORS AMERICA, INC.
  4. Ignition "ON" & Engine "ON", select "Current Data  " mode.
  5. Monitor the "Battery Voltage" parameter on the KDS/GDS.

    Specification:  Approx. 12.5V-14.5V

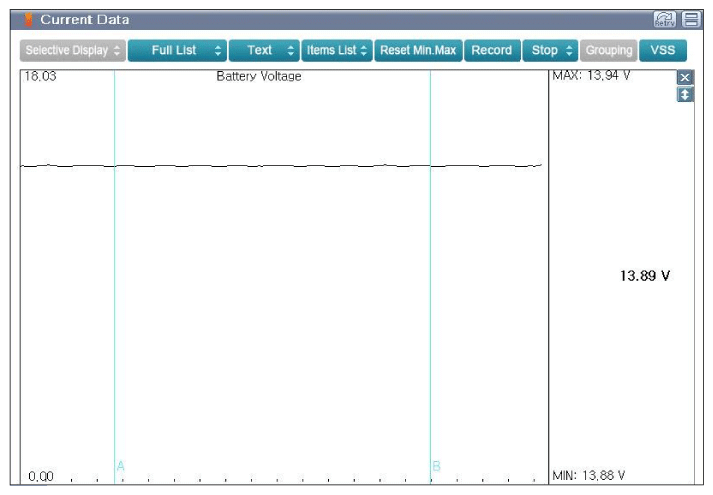

    Fig 2: Screen Display - Battery Voltage Parameter (Ignition ON & Engine ON)
    G11836537Courtesy of KIA MOTORS AMERICA, INC.
  6. Is parameter within specifications?

    YES

    NO

    • This may be a intermittent problem caused by poor contact of component or the MDPS ECU.
    • Thoroughly check for looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector.
    • Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
