Engine Control System Diagnosis - 2.4L (1 Of 3) - Optima (Except HEV)
>>
DTC P0191-00: Fuel Rail Pressure Sensor Circuit Range/Performance
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

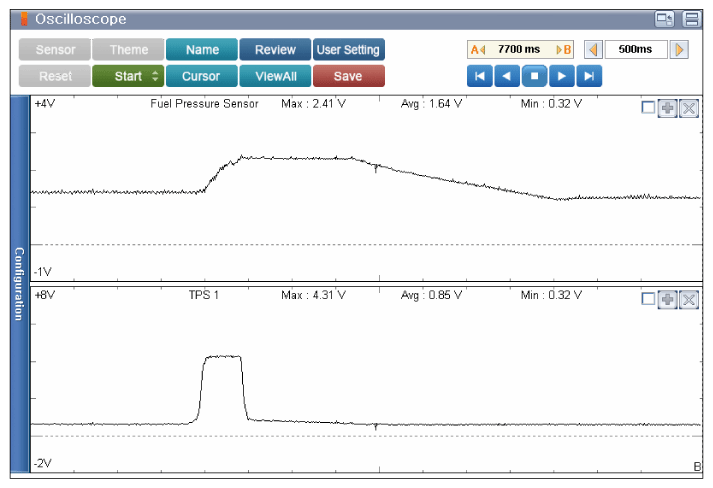

Fig 1: Screen Display - Fuel Rail Pressure Sensor Signal Voltage Increases In Proportion To Engine Speed (Engine Load)
Courtesy of KIA MOTORS AMERICA, INC.
