Smart Key Status Check

  1. Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
  2. After ignition "ON", select the "SMK STATUS INFO".

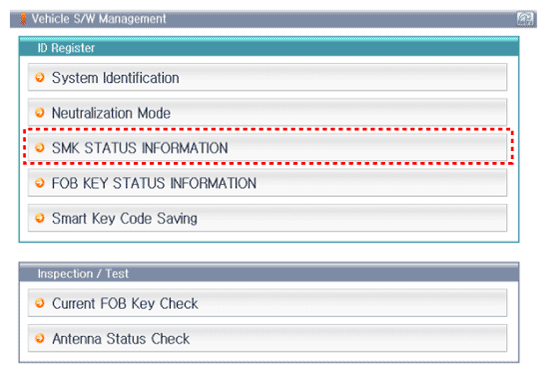

    Fig 1: Scantool Display - Vehicle S/W Management
    G11825072Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Scantool Display - SMK Status Information
    G11825073Courtesy of KIA MOTORS AMERICA, INC.
