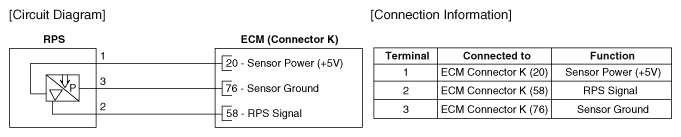

Home >> Kia >> 2016 >> Optima LX 1.6T >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L - Optima (Except HEV) >> Rail Pressure Sensor (RPS) >> Schematic Diagrams >> Circuit Diagram
