Circuit Diagram: Notes

Auto A/C

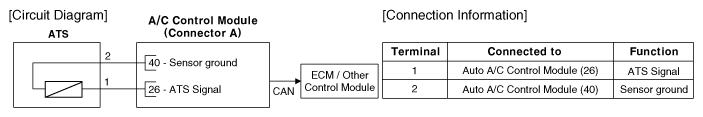

Fig 1: Ambient Temperature Sensor Circuit (Auto A/C)
G11823445Courtesy of KIA MOTORS AMERICA, INC.

Manual A/C

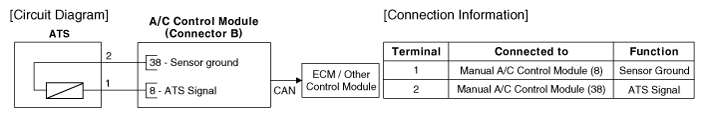

Fig 2: Ambient Temperature Sensor Circuit (Manual A/C)
G11823446Courtesy of KIA MOTORS AMERICA, INC.
