Repair Procedures: Removal: Notes

  1. Turn the ignition switch OFF and disconnect the battery (-) terminal.
  2. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

  3. Disconnect the connector (A) and then remove the ambient temperature sensor (B).

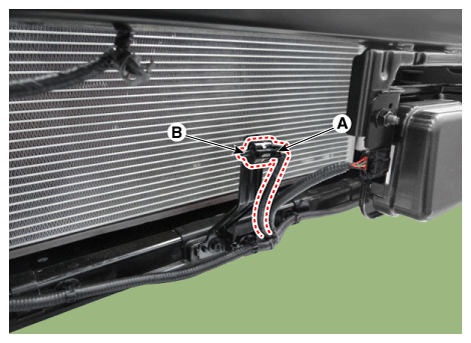

Fig 1: Removing Ambient Temperature Sensor
G11823448Courtesy of KIA MOTORS AMERICA, INC.
