Circuit Diagram

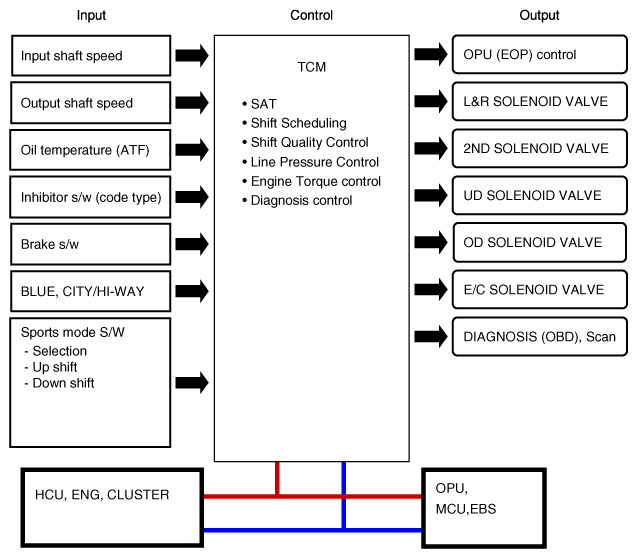

Fig 1: Automatic Transaxle System Circuit Diagram

G11815948

Courtesy of KIA MOTORS AMERICA, INC.
