Home >> Kia >> 2016 >> Optima Hybrid >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System (HEV) >> Valve Body >> Components And Components Location >> Component >> Notes

Components And Components Location: Component: Notes

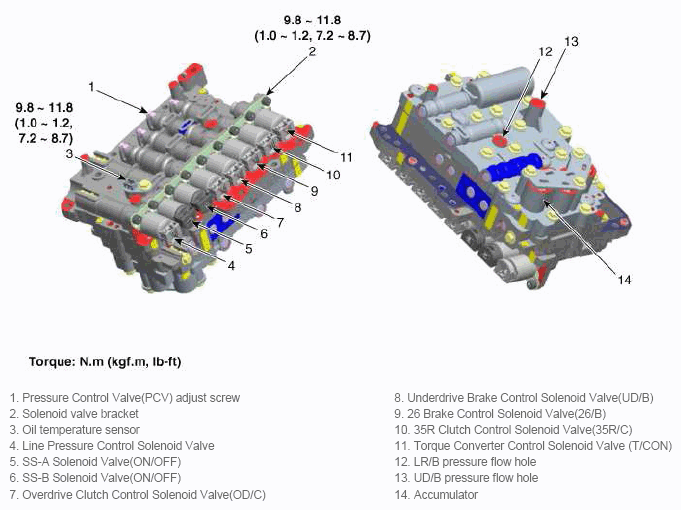

Fig 1: Exploded View Of Valve Body With Torque Specification

G11815900

Courtesy of KIA MOTORS AMERICA, INC.
