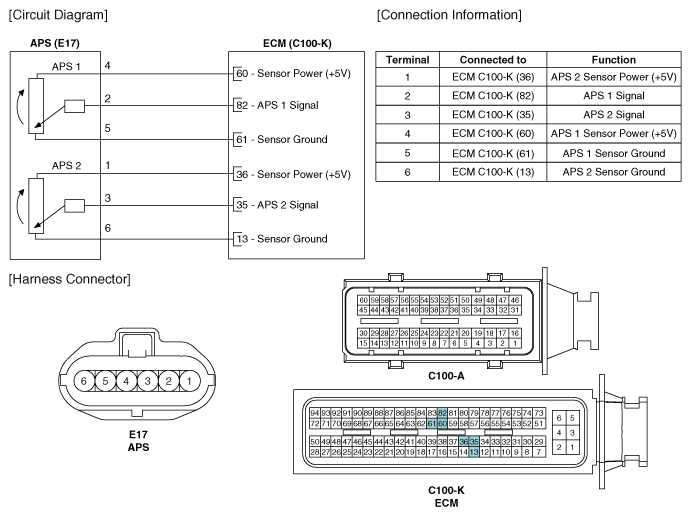

Home >> Kia >> 2016 >> Optima Hybrid >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Accelerator Position Sensor (APS) >> Schematic Diagram >> Circuit Diagram
