Components And Components Location: Components

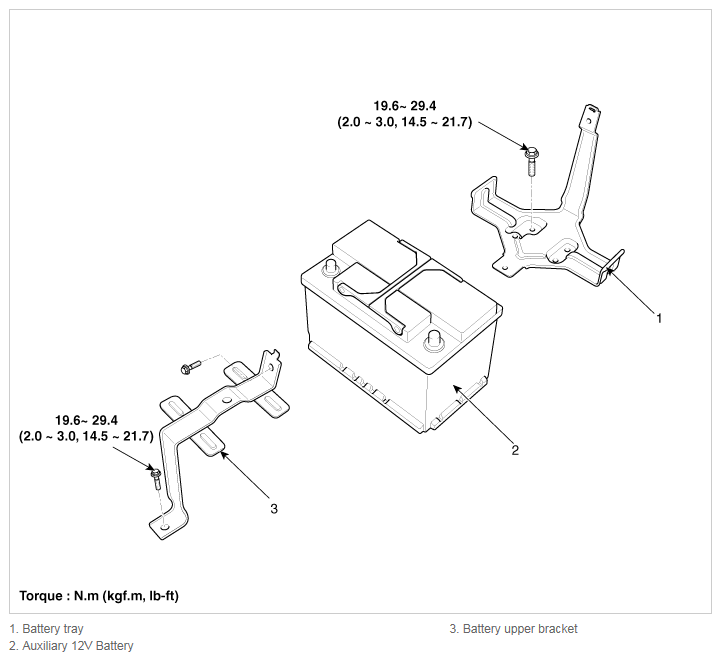

Fig 1: Exploded View Of Auxiliary 12v Battery With Torque Specification

G11815559

Courtesy of KIA MOTORS AMERICA, INC.
