WCS Reset

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF", connect scantool.
Ignition "ON" & Engine "OFF", select Weight Classification System and select "WCS Reset" mode.
You will see comments and current weight measured.
Make sure the measure weight is caused by occupant or tools or interference.
And then press "ENTER"

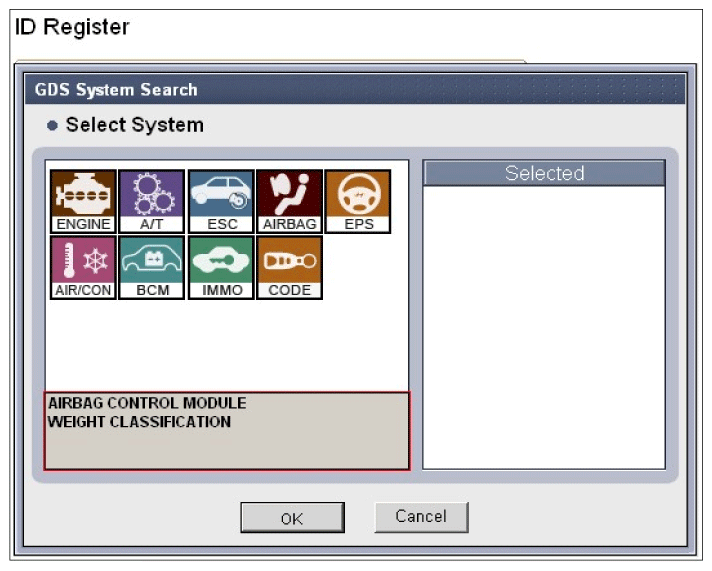

Fig 1: Display - Select System Screen (1 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

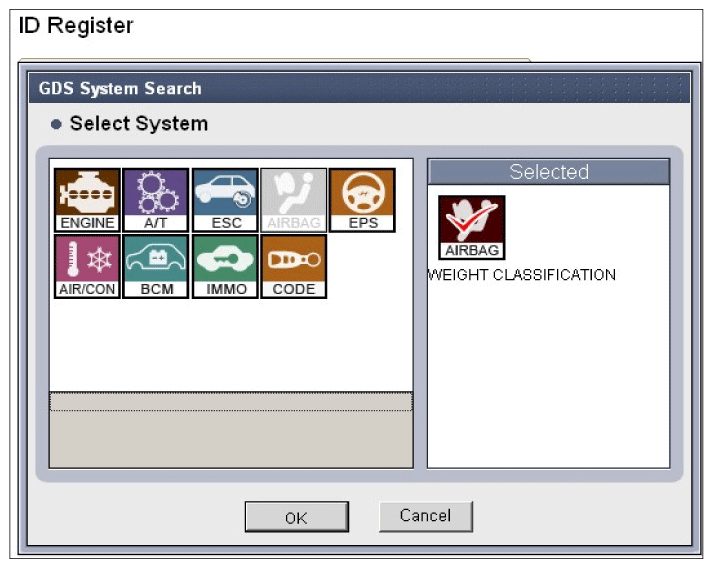

Fig 2: Display - Weight Classification System Select Screen (2 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

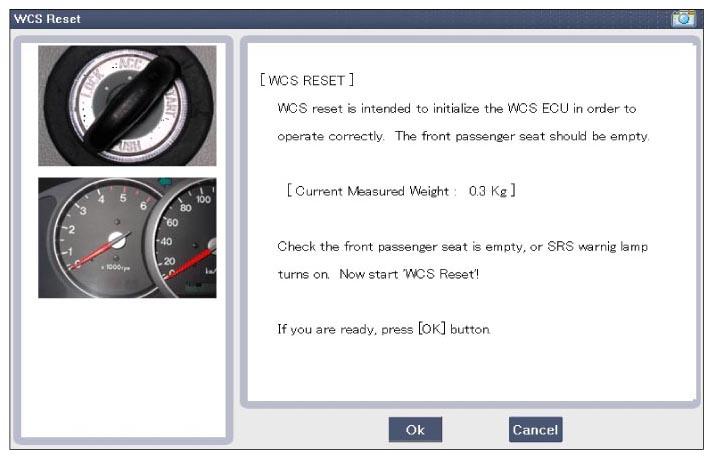

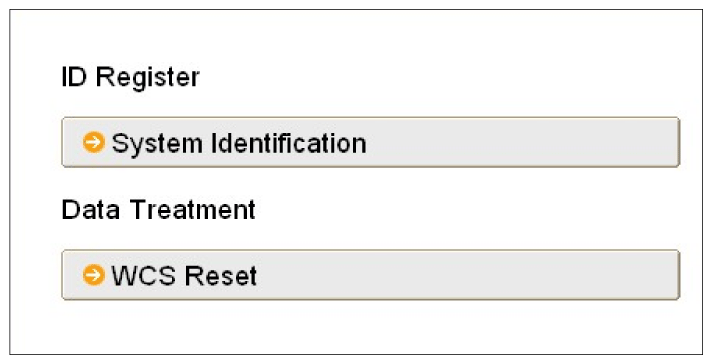

Fig 3: Display - Weight Classification System Reset Screen (3 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

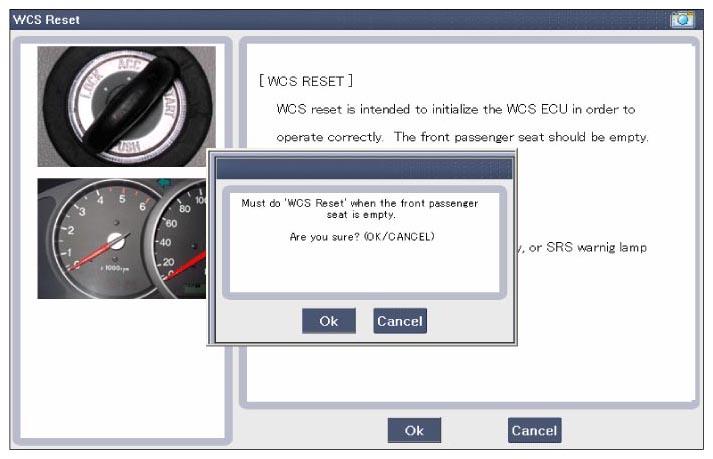

Fig 4: Display - Weight Classification System Reset 1 Screen (4 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

Specification: Approx. - 4.0 kg ~ + 4.0 kg
The 'WCS Reset' operation will take 3~10 second.
Make sure that there should not be vibration or weight adding to the passenger front seat.

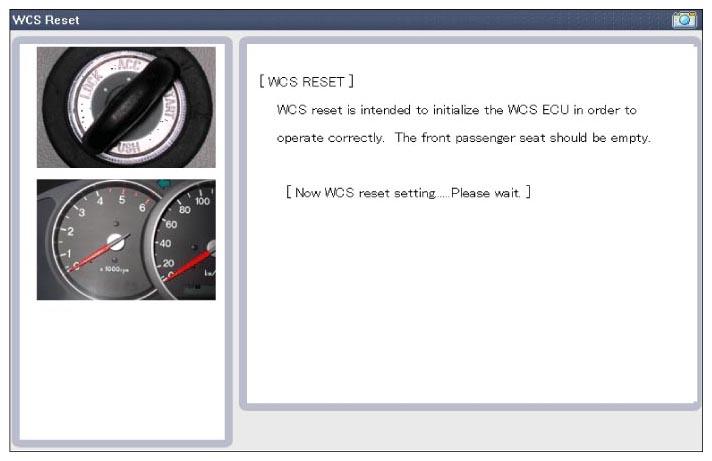

Fig 5: Display - Weight Classification System Reset 2 Screen (5 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Display - Weight Classification System Reset 3 (6 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Display - Weight Classification System Reset 4 (7 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.
If the 'WCS Reset' operation is finished successfully, you will see the following screen.

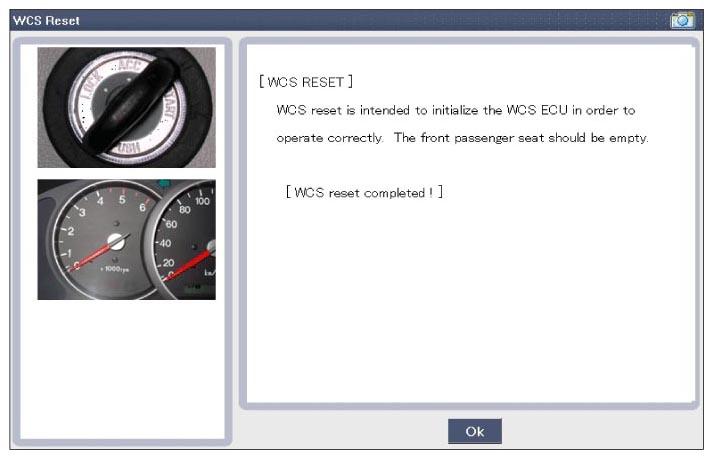

Fig 8: Display - WCS Normal Data Screen (8 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Display - Normal Current Data Screen (Empty) (9 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

Specification: Approx. - 4.0 kg ~ + 4.0 kg
Is the displayed parameter the same as the above 9 figure?
YES
- WCS reset is performed correctly
- Proceed to Verification Of Vehicle repair procedure below.
NO
- WCS reset isn't performed correctly.
- Proceed to the applicable troubleshooting procedure.
