Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.

Shut off the High Voltage circuit. (Refer to "High Voltage Shutoff Procedure ". )
Remove the air cleaner assembly and duct (Refer to Engine & Transaxle Assembly (R & I) - Optima HEV . ).
Drain the coolant of the hybrid motor cooling system and remove the reservoir installed on the HPCU (Refer to Coolant . )
Disconnect the coolant inlet hose (A) and outlet hose (B).
Remove the HPCU protector (C).

Fig 1: Removing HPCU Protector
Courtesy of KIA MOTORS AMERICA, INC.
Measure the voltage between the inverter terminals to check that the capacitor in the inverter is discharged completely
1. Remove air cleaner assembly and air duct.(Refer to Engine & Transaxle Assembly (R & I) - Optima HEV . )
2. Disconnect the inverter power cable (A).

  Fig 2: Locating Inverter Power Cable
  Courtesy of KIA MOTORS AMERICA, INC.

  Information

  Disconnect the inverter power cable as the procedures below.

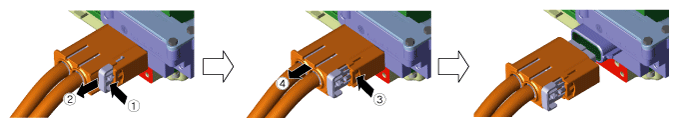

  Fig 3: Disconnecting Inverter Power Cable
  Courtesy of KIA MOTORS AMERICA, INC.
3. Measure the voltage between the inverter (+) terminal and the inverter (-) terminal.
  Less than 30V: High voltage circuit properly shut

  More than 30V: Faulty on high voltage circuit

  Fig 4: Measuring Voltage Between Inverter (+) And (-) Terminal (1 Of 2)
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 5: Measuring Voltage Between Inverter (+) And (-) Terminal (1 Of 2)
  Courtesy of KIA MOTORS AMERICA, INC.

  WARNING: If measured more than 30V, check if the safety plug is removed completely. If measured more than 30V despite the safety plug is removed, it can be serious problems on the high voltage circuit. In this case, check DTC and never touch on the high voltage system.
Disconnect the motor power cable (A).

Fig 6: Locating Motor Power Cable
Courtesy of KIA MOTORS AMERICA, INC.

Information

Disconnect the cable as the procedures below.

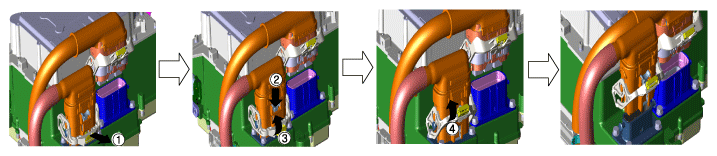

Fig 7: Disconnecting Motor Power Cable
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the HSG power cable (A).

Fig 8: Locating HSG Power Cable
Courtesy of KIA MOTORS AMERICA, INC.

Information

Disconnect the cable as the procedures below.

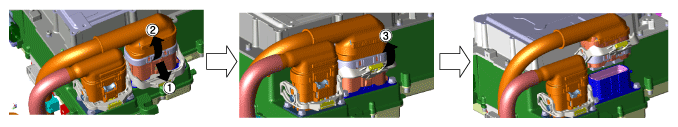

Fig 9: Disconnecting HSG Power Cable
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the electric A/C compressor power cable (A).
1. Pull the lever (B) in the direction of the arrow.
2. Press the hook (C), and then pull the motor power cable connector.
Disconnect the MCU connector (D).

Fig 10: Disconnecting MCU Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the HCU connector (A) and LDC connector (B).
Disconnect the LDC power outlet cable (C) and ground cable (D).

Fig 11: Locating HCU Connector, LDC Connector And LDC Power Outlet Cable
Courtesy of KIA MOTORS AMERICA, INC.
Remove the installation bolts (A), and then remove the HPCU from the vehicle.

Fig 12: Removing HPCU Installation Bolts

Courtesy of KIA MOTORS AMERICA, INC.
