Repair Procedures: Removal

  1. Turn the ignition switch off and disconnect the battery (-) terminal.
  2. Remove variable charge motion actuator connector (A) and three mounting bolts.
  3. Remove intake manifold vacuum pipe (B) in order to secure work space.

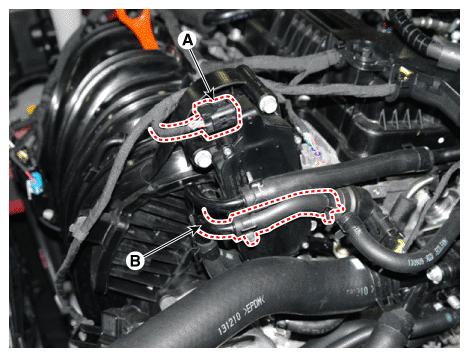

    Fig 1: Removing Variable Charge Motion Actuator Connector And Intake Manifold Vacuum Pipe
    G11827024Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove VCMA rod clip (A) and connection link between flap (B) using screwdriver.

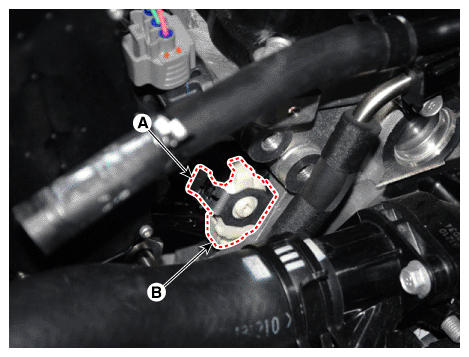

    Fig 2: Removing VCMA Rod Clip
    G11827025Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: VCMA connection link can be damaged. So, make sure to remove it in a horizontal direction.
    Make sure that groove part of the connection link (C) is pointing upward when mounting VCMA.
