Signal Waveform

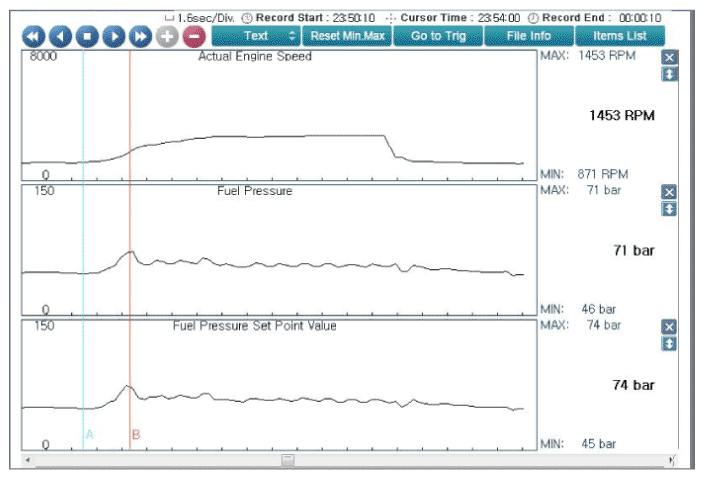

Fig 1: Display - Actual Engine Speed Screen

Courtesy of KIA MOTORS AMERICA, INC.

Service data review related with fuel pressure sensor at idle and acceleration.

(Inspect low pressure fuel line between fuel pump and high pressure pump first when the pressure of low pressure line is displayed low at idle.)
