Circuit Diagram

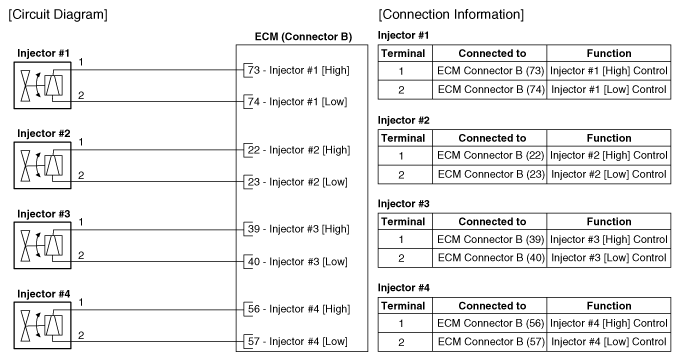

Fig 1: GDI Injector Schematic

G11826993

Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

Fig 2: GDI Injector Connector Terminals

G11826994

Courtesy of KIA MOTORS AMERICA, INC.
