Circuit Diagram

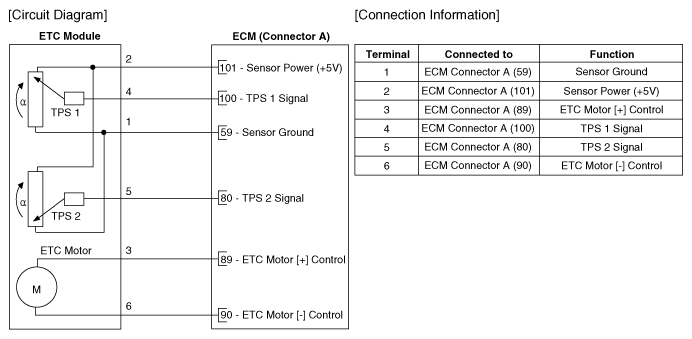

Fig 1: Electronic Throttle Control Circuit
G11826929Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

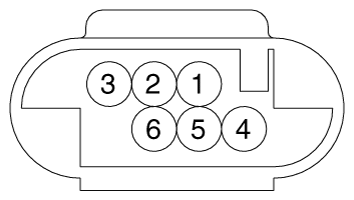

Fig 2: Electronic Throttle Control Connector Terminals
G11826930Courtesy of KIA MOTORS AMERICA, INC.
