Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.

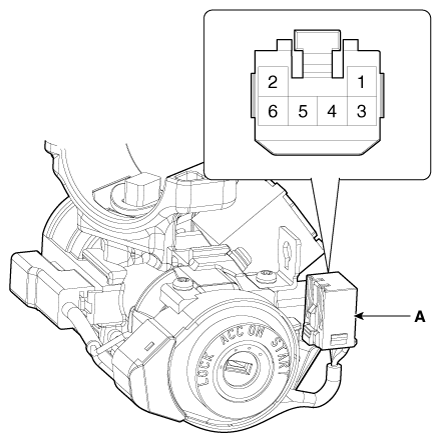

    Fig 1: Locating Ignition Switch Connector Terminals
    G11827901Courtesy of KIA MOTORS AMERICA, INC.

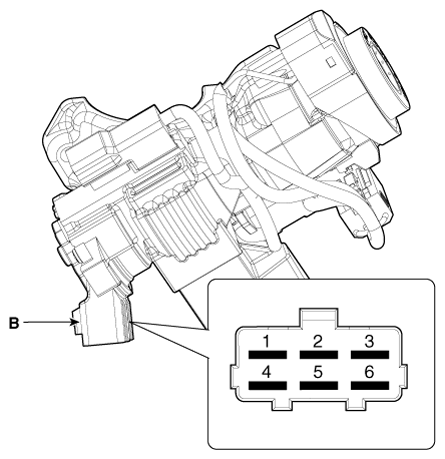

    Fig 2: Locating Key Warning Switch Connector Terminals
    G11827902Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between the terminals.
  3. If continuity is not as specified, replace the switch.
Fig 3: Terminals Continuity Chart
G11827903Courtesy of KIA MOTORS AMERICA, INC.
