Signal Waveform & Data

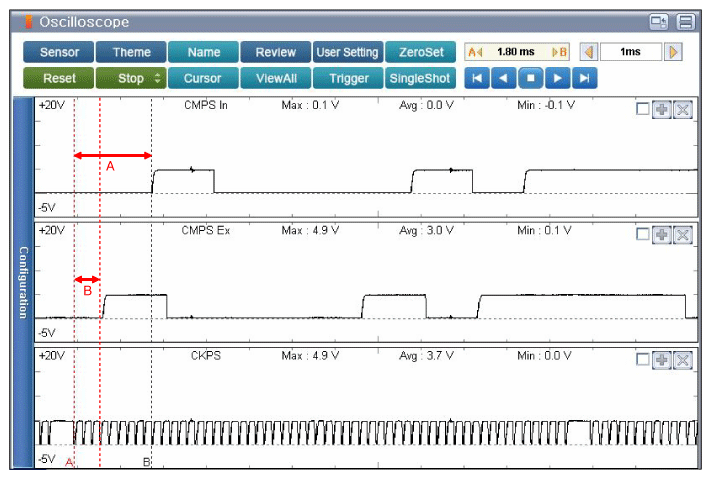

Fig 1: Screen Display - Normal Signal Waveform Of CKPS And CMPS-IN/EX At Acceleration
G11838620Courtesy of KIA MOTORS AMERICA, INC.

A: CKPS & CMPS-Intake) Synchronization - There are about 9 teeth between the CKPS missing tooth and CMPS In Signal

B: CKPS & CMPS-Exhaust) Synchronization - There are about 3 teeth between the CKPS missing tooth and CMPS Ex Signal
