Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. Tighten the HECU mounting bolts and nuts to the specified torque.
  3. After installation, bleed the brake system.

    (Refer to BRAKE SYSTEM BLEEDING Brake system - )

  4. Connect the KDS/GDS to the data link connector located underneath the dash panel.
  5. Select and operate according to the instructions on the KDS/GDS screen.

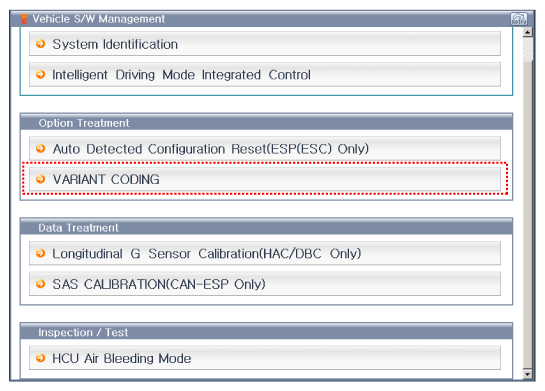

    Fig 1: Display - Variant Coding Screen (1 Of 2)
    G11824465Courtesy of KIA MOTORS AMERICA, INC.

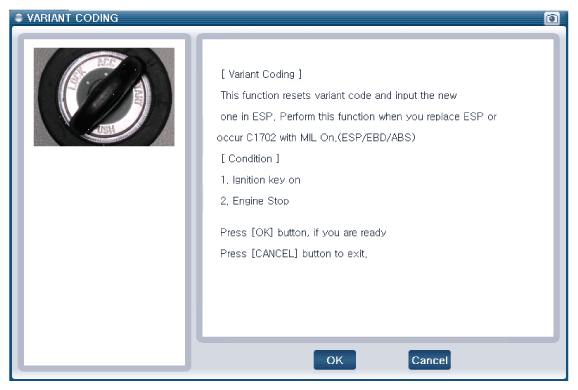

    Fig 2: Display - Variant Coding Screen (2 Of 2)
    G11824466Courtesy of KIA MOTORS AMERICA, INC.

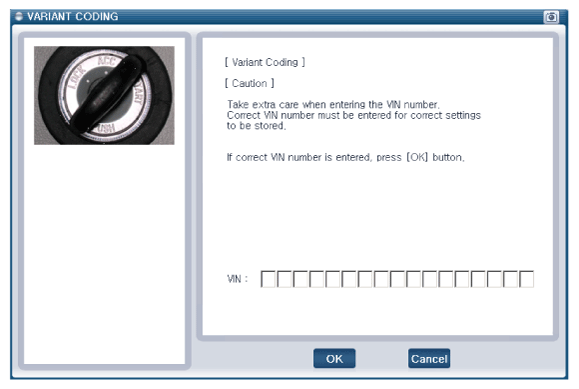

    Fig 3: Display - Caution For Variant Coding Screen
    G11824467Courtesy of KIA MOTORS AMERICA, INC.
