Signal Waveform & Data

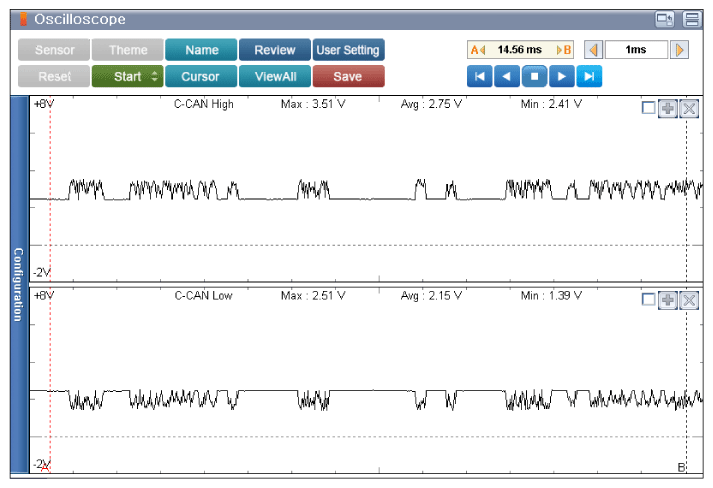

Fig 1: Screen Display - C-CAN Normal Waveform
G11831457Courtesy of KIA MOTORS AMERICA, INC.

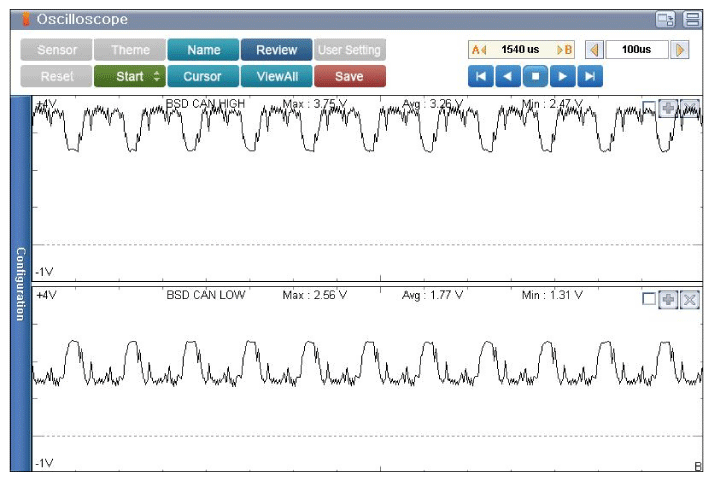

Fig 2: Screen Display - Waveform Of Disconnected BSD Sensor (LH) Connector
G11831458Courtesy of KIA MOTORS AMERICA, INC.
