Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

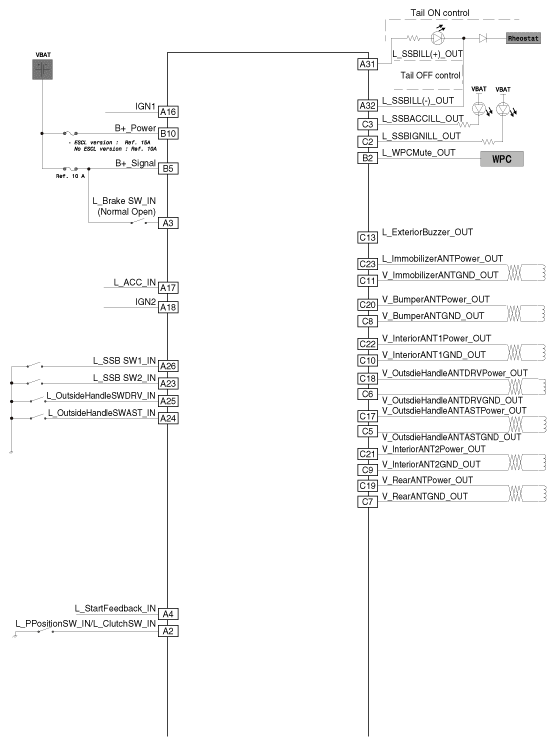

Fig 1: Smart Key Unit Circuit (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Smart Key Unit Circuit (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
