Components and Components Location: Component

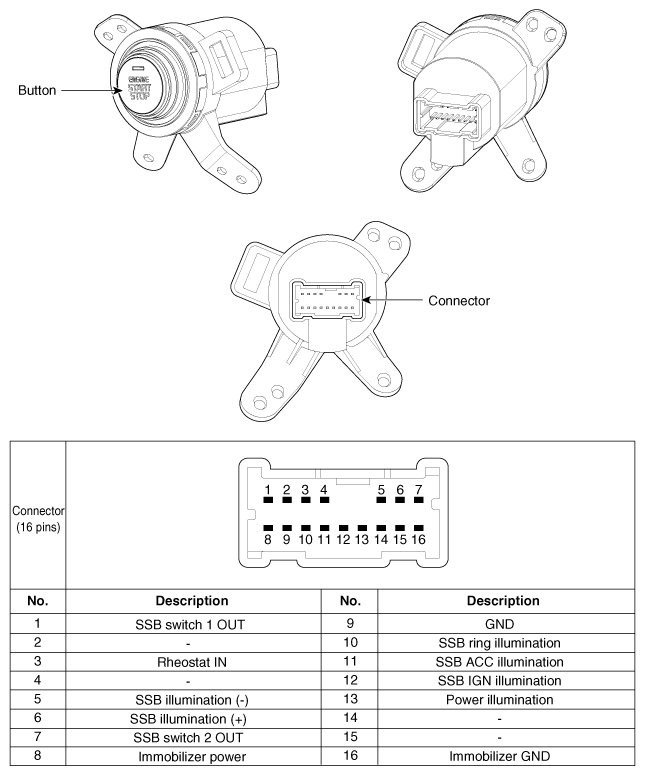

Fig 1: Start And Stop Button Connector Terminals

G11827831

Courtesy of KIA MOTORS AMERICA, INC.
