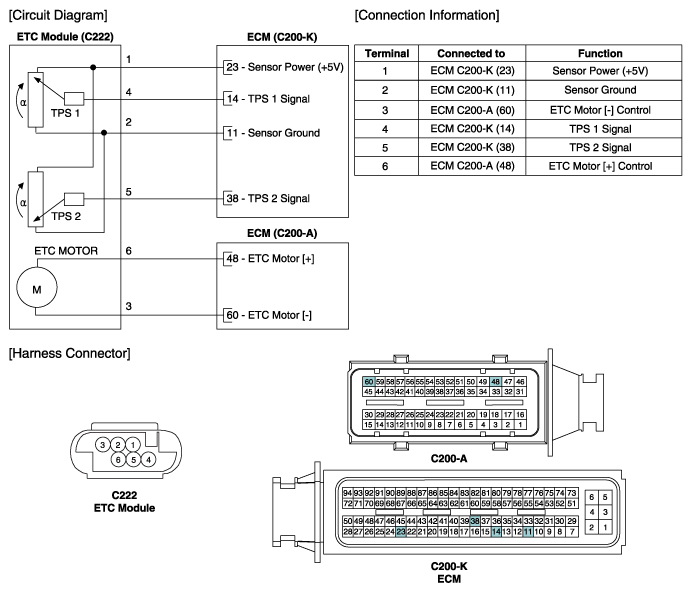

Home >> Kia >> 2016 >> K900 V8 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 5.0L >> ETC (Electronic Throttle Control) System >> Schematic Diagrams >> Circuit Diagram
