Signal Waveform & Data

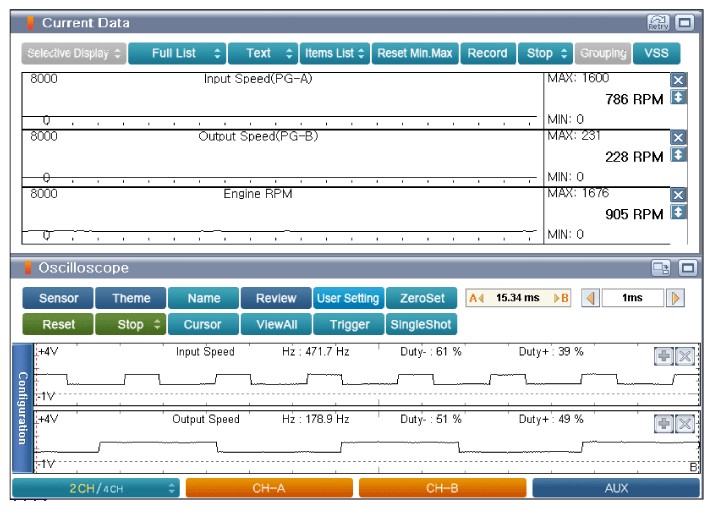

Fig 1: Screen Display - N Range Signal Waveform & Data

Courtesy of KIA MOTOR AMERICA, INC.

Fig 2: Screen Display - D Range Signal Waveform & Data

Courtesy of KIA MOTOR AMERICA, INC.

Input speed sensor - duty (-) 62%

Output speed sensor - duty (-) 50%

Input speed sensor - duty (-) 62%

Output speed sensor - duty (-) 50%
