Monitor GDS Data

  1. Connect GDS to data link Connector (DLC).
  2. Engine "ON".
  3. Monitor the "EPS Temperature" parameters on the "Current Data"  With GDS.

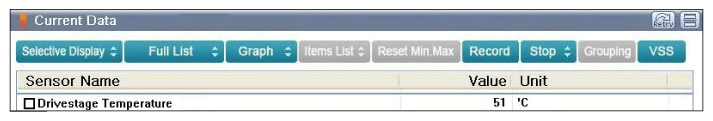

    Fig 1: Scantool Display - Drive Stage Temperature Parameters On Current Data (Engine ON)
    G11821817Courtesy of KIA MOTORS AMERICA, INC.
  4. Are "EPS Temperature" within normal range?

    YES

    • Faulty in temperature sensor or fault was repaired and MPU memory was not cleared. Go to "SYSTEM CHECK " procedure.

    NO

    • Wait for cooling of MPU-motor and then go to "SYSTEM CHECK " procedure.
