Monitor GDS Data

  1. Connect GDS to data link Connector (DLC).
  2. Engine "ON".
  3. Monitor the "EPS Temperature" parameter on the "Current Data"  With GDS.

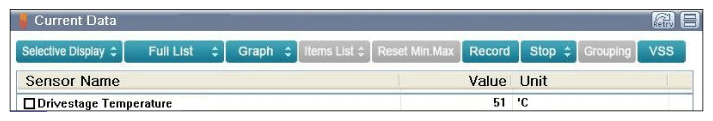

    Fig 1: Scantool Display - EPS Temperature Parameter On Current Data (Engine ON)
    G11821772Courtesy of KIA MOTORS AMERICA, INC.
  4. Is "EPS temperature" within normal range?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or MPU's connector or was repaired and MPU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
