Engine Control System Diagnosis - 3.8L (1 Of 3)
>>
DTC P0140: O2 Sensor Circuit No Activity Detected (Bank 1 / Sensor 2)
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

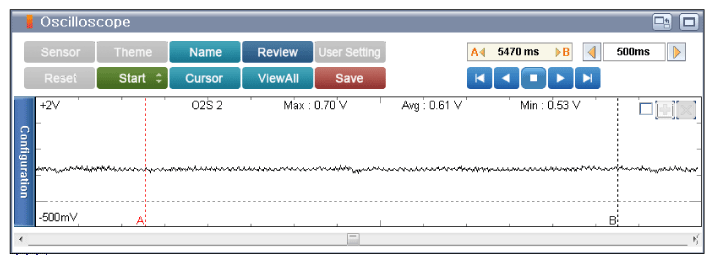

Fig 1: Scantool Display - Signal Waveform Of O2S2 At Normal Condition
Courtesy of KIA MOTORS AMERICA, INC.
