Kia
>>
2016
>>
K900 V6
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 3.8L
>>
Injector Drive Box (IDB)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

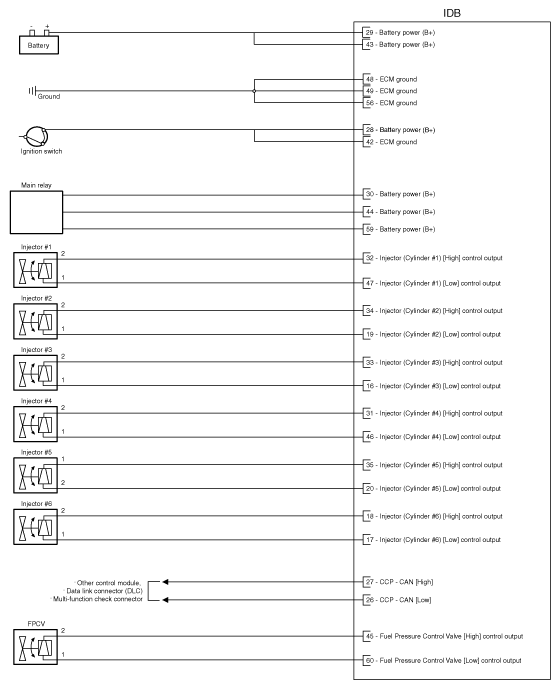

Fig 1: Injector Drive Box Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Injector Drive Box Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
