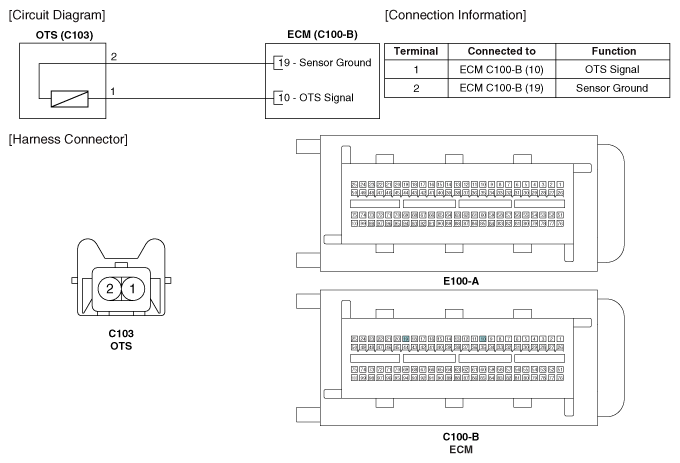

Home >> Kia >> 2016 >> K900 V6 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.8L >> CVVT Oil Temperature Sensor (OTS) >> Schematic Diagrams >> Circuit Diagram
