Emission Control System - General Information
>>
Schematic Diagram
Schematic Diagram

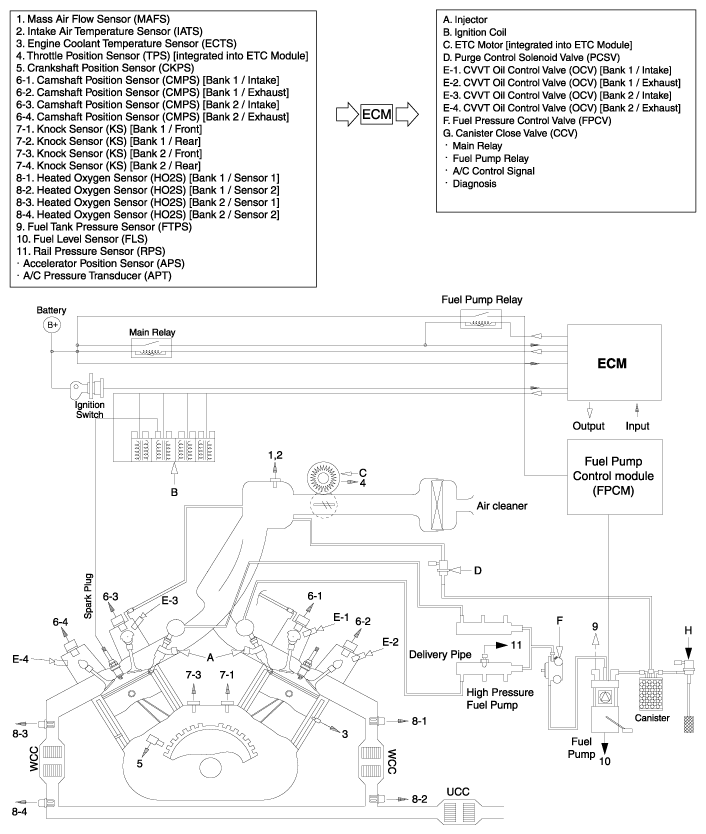

Fig 1: Emission Control System
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
