Components Location (3.8L)

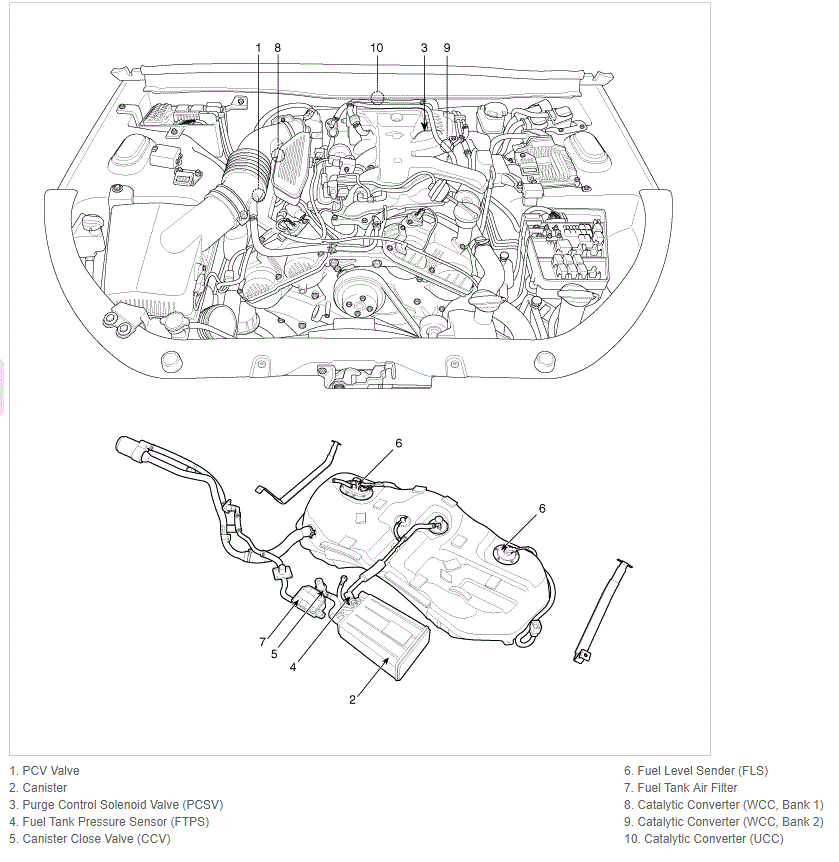

Fig 1: Emission Control System
G00568944Courtesy of KIA MOTORS AMERICA, INC.

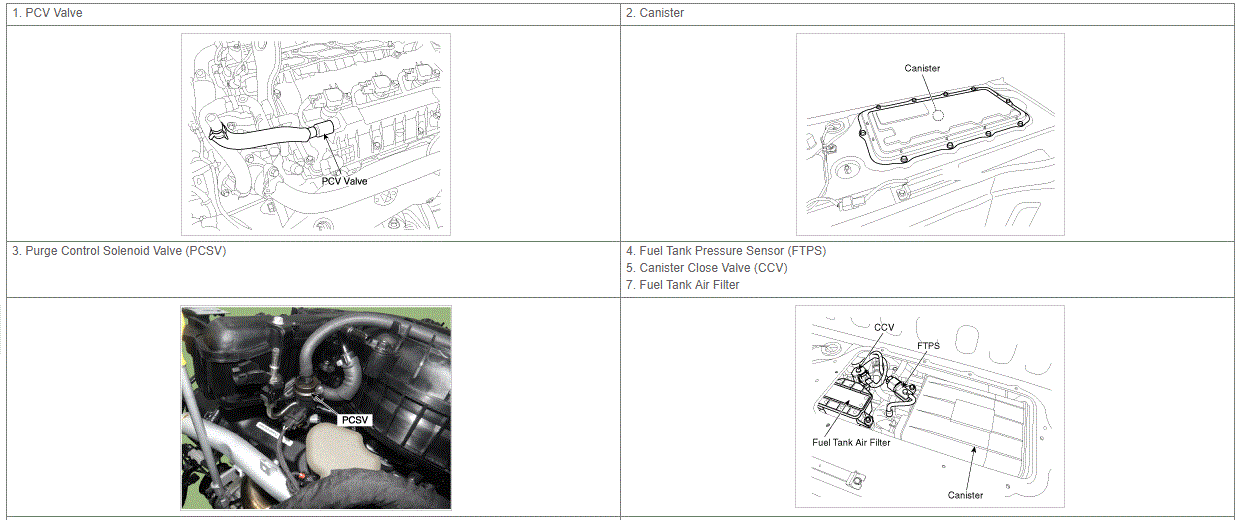

Fig 2: Identifying Purge Control Solenoid Valve And Canister Close Valve
G00568945Courtesy of KIA MOTORS AMERICA, INC.

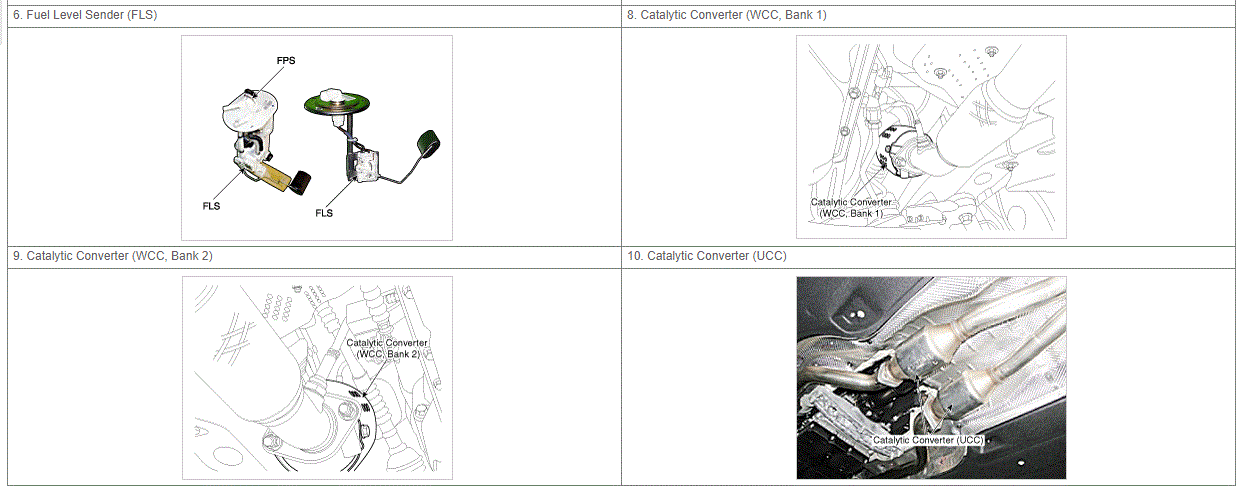

Fig 3: Identifying Fuel Level Sender And Catalytic Converter
G00568946Courtesy of KIA MOTORS AMERICA, INC.
