Standard Flow of Diagnostic Troubleshooting

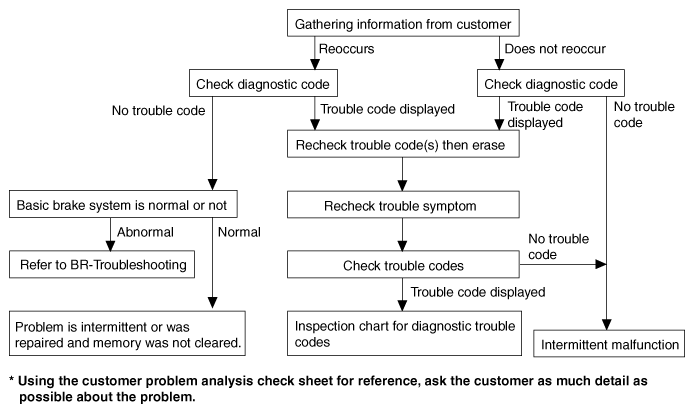

Fig 1: Diagnostic Troubleshooting Standard Flow Chart
G11800859Courtesy of KIA MOTORS AMERICA, INC.
