Signal Waveform & Data

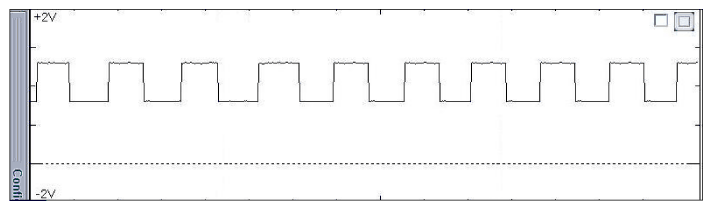

Fig 1: Scantool Display - Normal Waveform Of Wheel Speed Sensor With Low Speed Condition

Courtesy of KIA MOTORS AMERICA, INC.

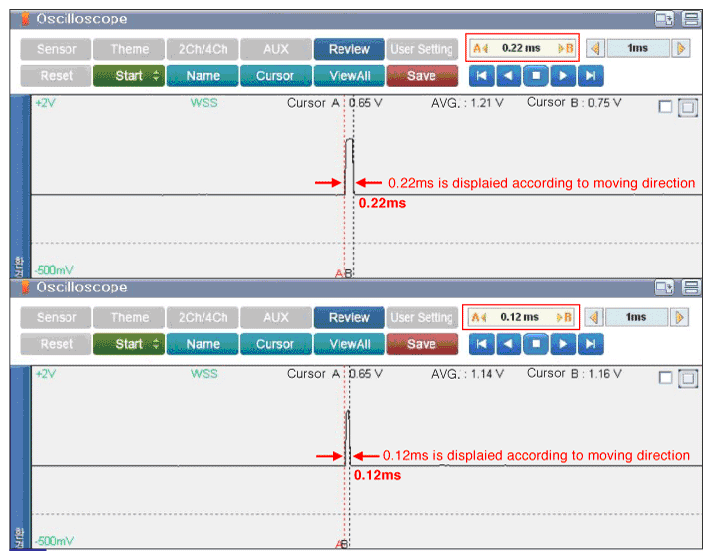

Fig 2: Scantool Display - Normal Waveform Of Smart Type Wheel Speed Sensor With Standing Still

Courtesy of KIA MOTORS AMERICA, INC.

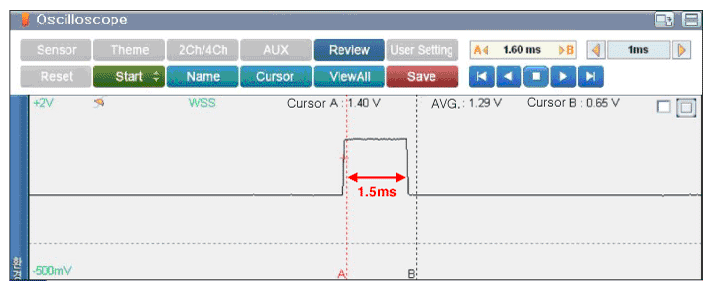

Fig 3: Scantool Display - Normal Waveform Of Smart Type Wheel Speed Sensor With Moving Condition

Courtesy of KIA MOTORS AMERICA, INC.

• High: Approx. 1.4V, Low: Approx. 0.7V

* Smart type Wheel Speed Sensor is applied to the Rear Wheel Speed Sensor of the vehicle equiped SPAS.
