Components and Components Location: Components

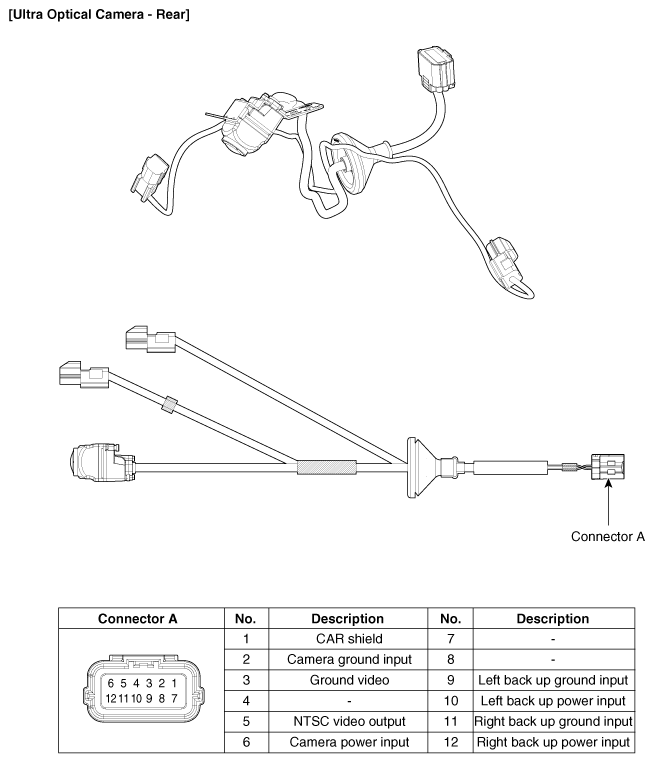

Fig 1: Pantoscopic Camera Connector Terminals Description Chart (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

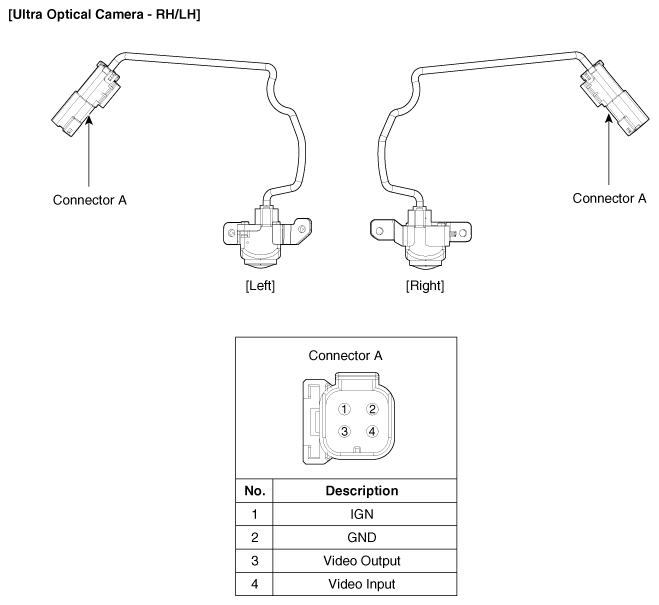

Fig 2: Pantoscopic Camera Connector Terminals Description Chart (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

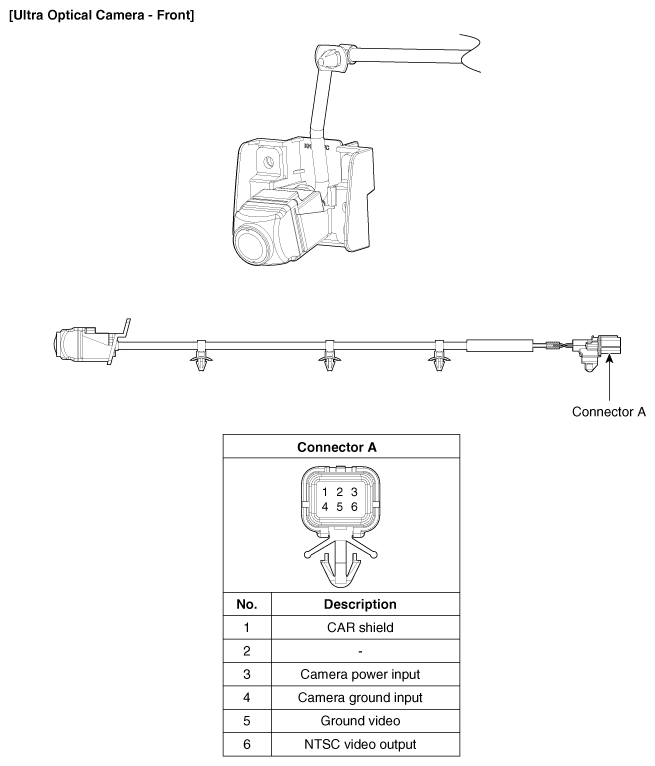

Fig 3: Pantoscopic Camera Connector Terminals Description Chart (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
