BSD Variant Code Reading

Select the "BSD Variant Code Reading" procedure.

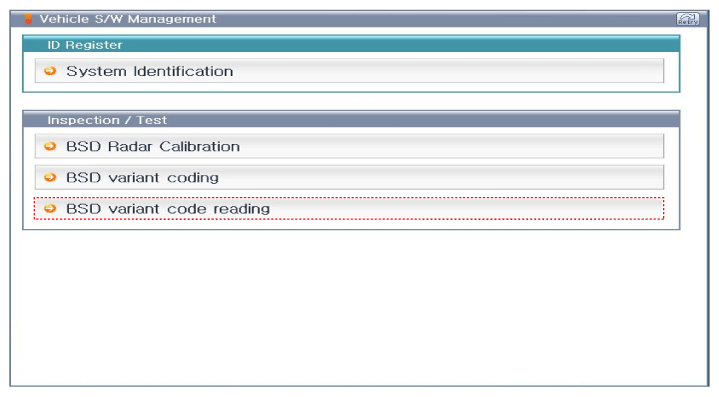

Fig 1: Screen Display - BSD Variant Code Reading
Courtesy of KIA MOTORS AMERICA, INC.
Proceed the "BSD VARIANT CODE READING " procedure according to the GDS screen message.

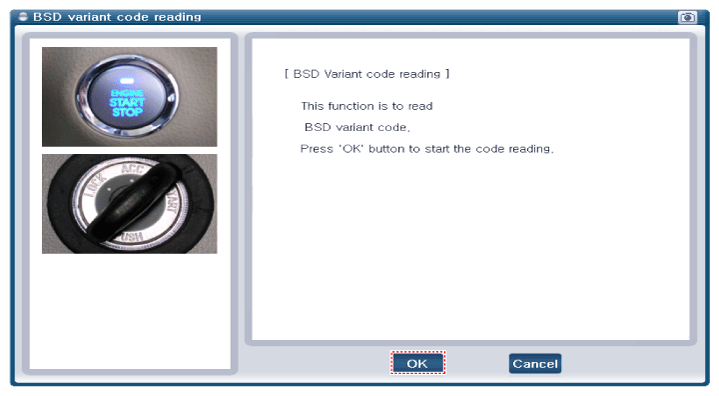

Fig 2: Screen Display - BSD Variant Code Reading (Press OK To Start Code Reading)
Courtesy of KIA MOTORS AMERICA, INC.

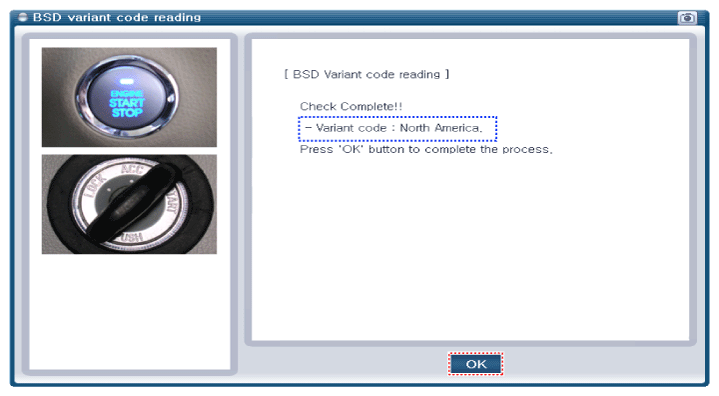

Fig 3: Screen Display - BSD Variant Code Reading (Check Complete)
Courtesy of KIA MOTORS AMERICA, INC.

Information

If BSD unit does not set "BSD Variant Coding", "Variant Code: None" is verified.

Perform the "BSD VARIANT CODING " certainly.

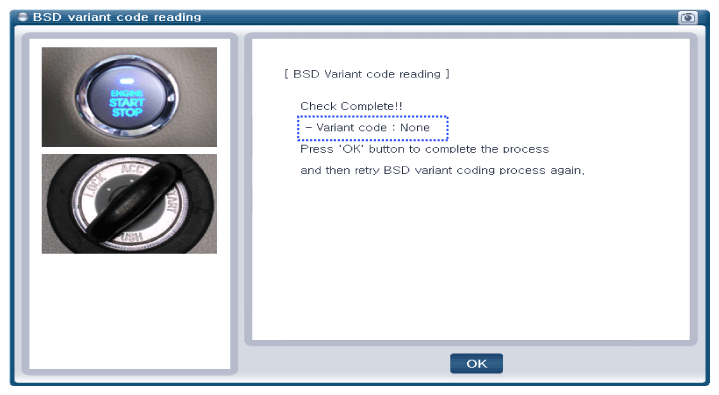

Fig 4: Screen Display - BSD Variant Code Reading (Variant Code: None)
Courtesy of KIA MOTORS AMERICA, INC.
