Repair Procedures: Inspection

  1. Disconnect the BSD switch connector.

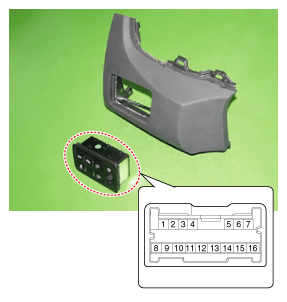

    Fig 1: Locating BSD Switch Connector
    G11801563Courtesy of KIA MOTORS AMERICA, INC.
  2. Operate the BSD switch, then check for continuity between terminals of BSD switch connector.
    Fig 2: BSD Switch Connector Terminals Continuity Chart
    G11801564Courtesy of KIA MOTORS AMERICA, INC.
