Component Location

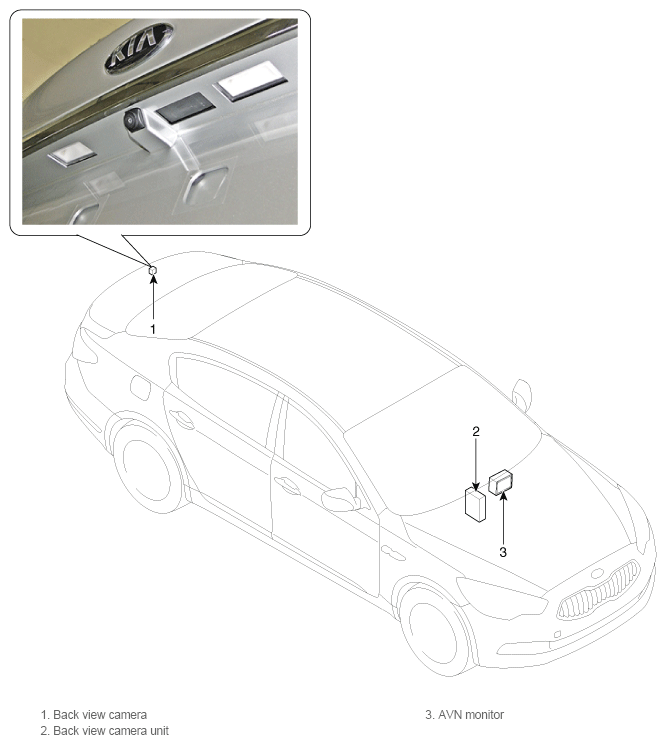

Fig 1: Back View Camera Components
G11801509Courtesy of KIA MOTORS AMERICA, INC.
NOTE: Back view camera unit provide only camera display function but the shape is same with PGS (Parking Guide System) unit.
