BSD Variant Coding

Select the "BSD Variant Coding" procedure in BSD system.

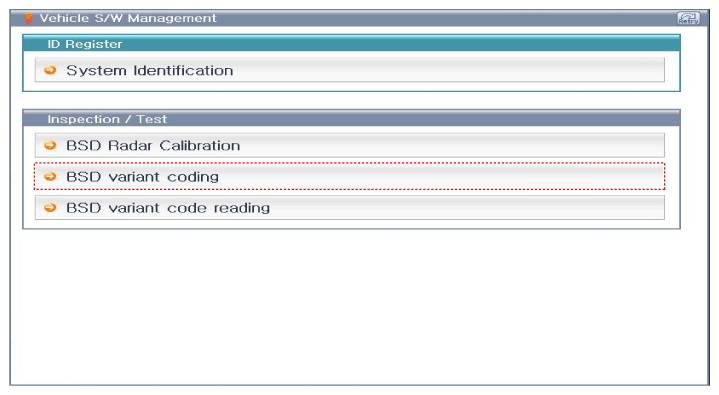

Fig 1: Screen Display - BSD Variant Coding
Courtesy of KIA MOTORS AMERICA, INC.
Perform the "BSD VARIANT CODING " procedure according to the GDS screen message.

Fig 2: Screen Display - BSD Variant Coding (Set Region Type And Bumper Type)
Courtesy of KIA MOTORS AMERICA, INC.
Select "C1" or "C2" for each region and transmission.
And then proceed the BSD variant coding process.

Fig 3: Screen Display - BSD Variant Coding (Select Regional Option)
Courtesy of KIA MOTORS AMERICA, INC.

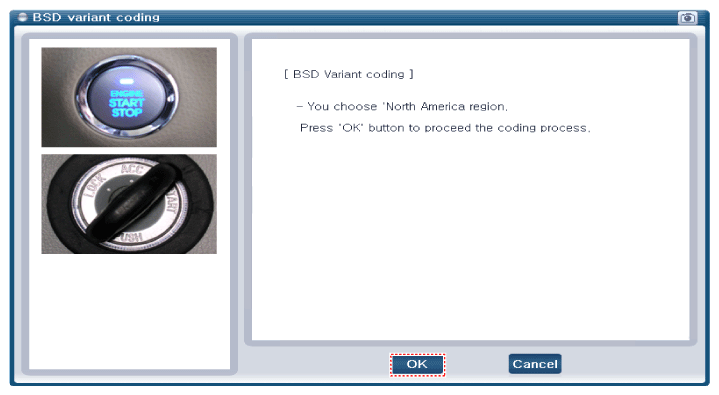

Fig 4: Screen Display - BSD Variant Coding (Regional Selected)
Courtesy of KIA MOTORS AMERICA, INC.

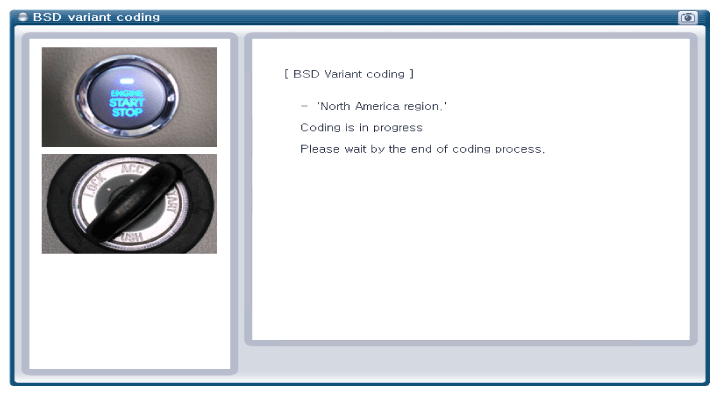

Fig 5: Screen Display - BSD Variant Coding (Coding In Progress)
Courtesy of KIA MOTORS AMERICA, INC.

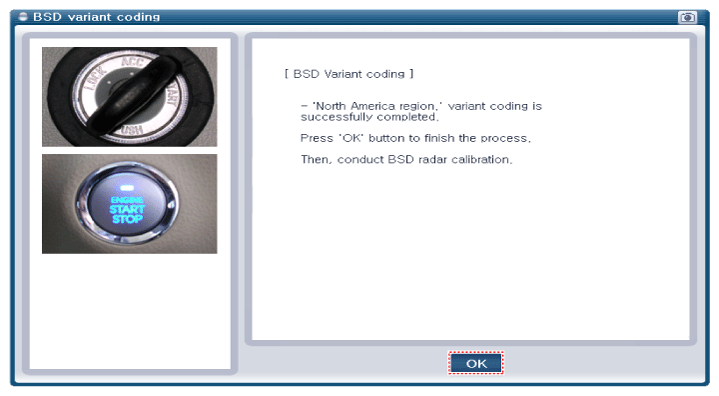

Fig 6: Screen Display - BSD Variant Coding (Successfully Completed)
Courtesy of KIA MOTORS AMERICA, INC.
