Circuit Diagram

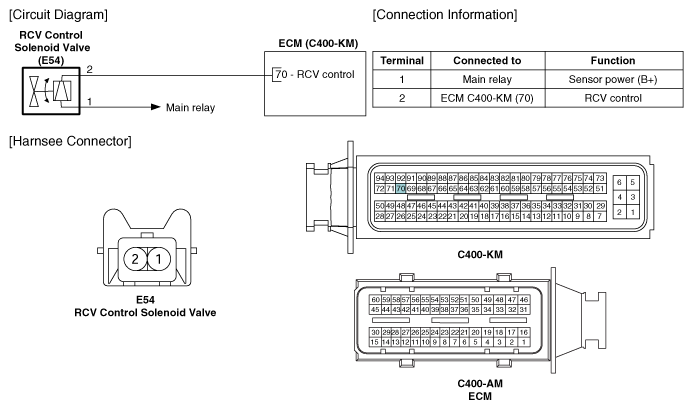

(M/T)

Fig 1: RCV Control Solenoid Valve Circuit Diagram - M/T
G11794943Courtesy of KIA MOTORS AMERICA, INC.

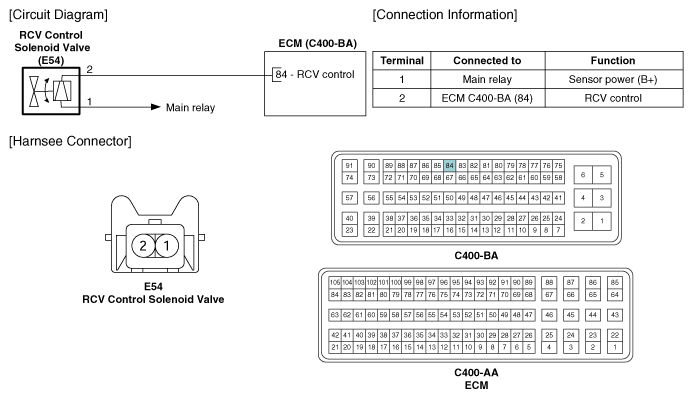

(A/T)

Fig 2: RCV Control Solenoid Valve Circuit Diagram - A/T
G11794944Courtesy of KIA MOTORS AMERICA, INC.
