Circuit Diagram

(M/T)

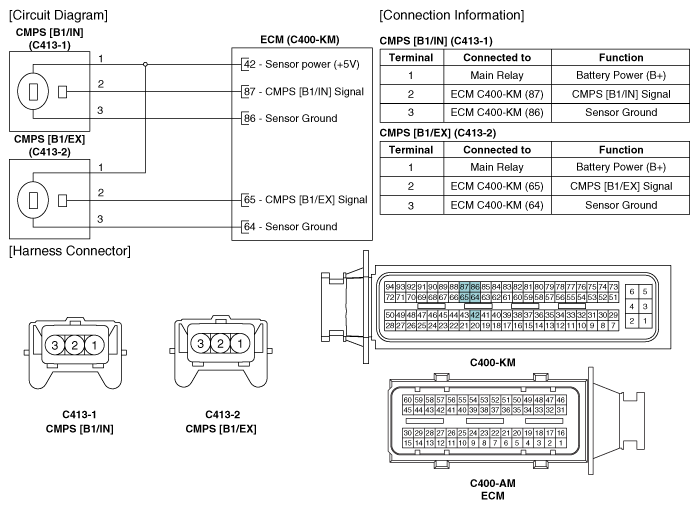

Fig 1: Camshaft Position Sensor (CMPS) Circuit Diagram - M/T
G11794887Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

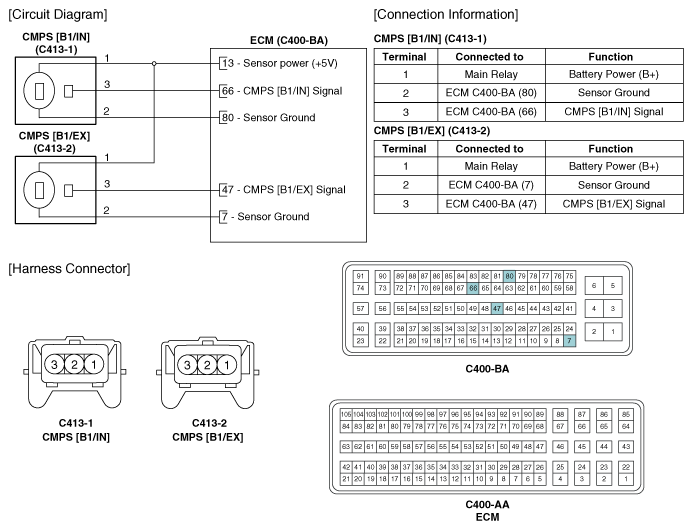

Fig 2: Camshaft Position Sensor (CMPS) Circuit Diagram - A/T
G11794888Courtesy of KIA MOTORS AMERICA, INC.
